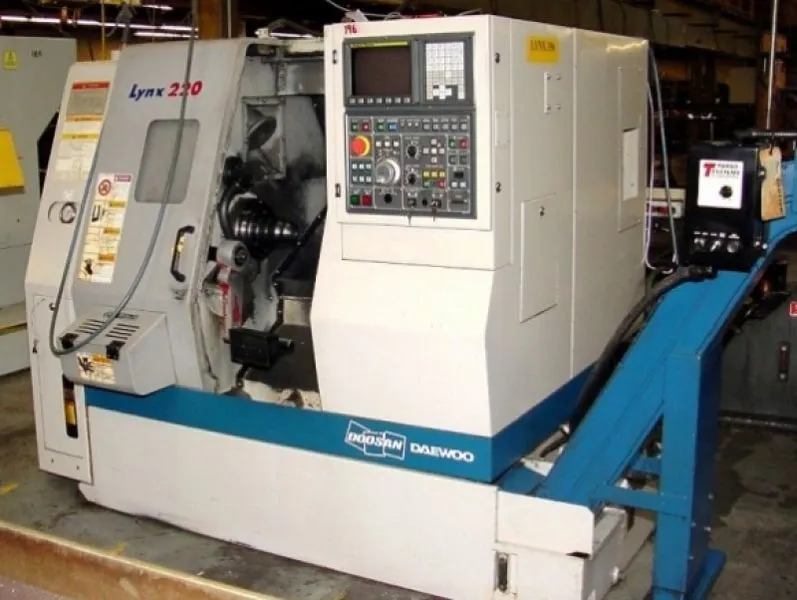

DAEWOO/DOOSAN LYNX 220C CNC TURNING CENTER 2006

Machine Details
SERIAL NUMBER: L2200927 NEW: 2006

SPECIFICATIONS:

SWING OVER BED ................ 20.07"

SWING OVER SADDLE ............. 11.41"

MAX. TURNING DIAMETER ......... 12.59"

MAX. TURNING LENGTH ........... 12.00"

MAX. BAR CAPACITY ............. 2.55"

X-AXIS TRAVEL ................. 6.88"

Z-AXIS TRAVEL ................. 12.99"

SPINDLE SPEED ................. 4,000 RPM

SPINDLE NOSE .................. A2-6

SPINDLE BEARING DIA. .......... 4.33"

SPINDLE THROUGH HOLE DIA. ..... 2.99"

NUMBER OF TOOL STATIONS ....... 12

OD TOOL SIZE .................. 1"

BORING BAR DIA. ............... 1.57"

RAPID TRAVERSE RATE X/Z ....... 1181/1417 IPM

MAIN SPINDLE MOTOR ............ 12 Kw

ELECTRIC POWER SUPPLY ......... 23.7 Kva

APPROX. DIMENSIONS ............ 102" X 63" X 63"

APPROX. WEIGHT ................ 7,040 LBS.
