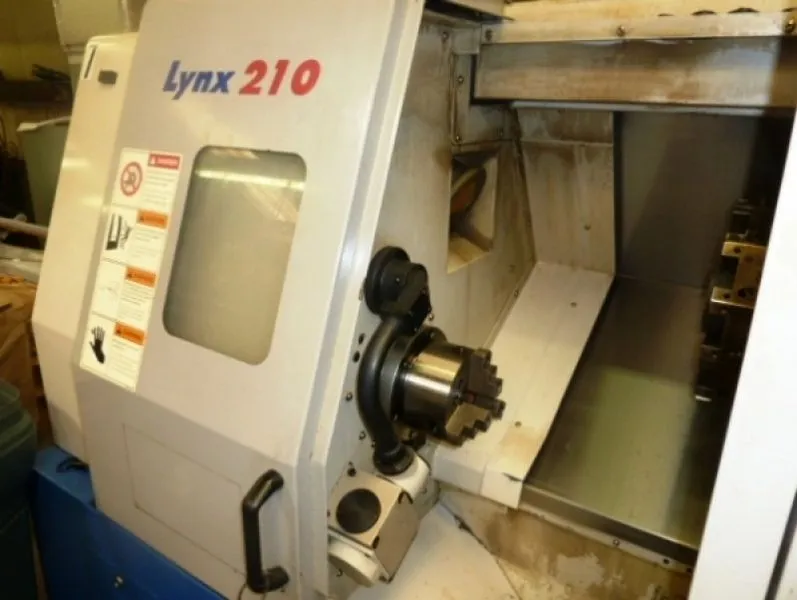

Daewoo Lynx 210 CNC Lathe 2004
Have one to sell?
ConditionUsed
1 available
Machine Details
SPECIFICATIONS:
SWING OVER BED: 18.11"
SWING OVER SADDLE: 13.7"
MAXIMUM TURNING DIAMETER: 11.0"
MAXIMUM TURNING LENGTH: 11.81"
BAR CAPACITY: 1.77"
X-AXIS TRAVEL: 6.3" (5.51 + .79)
Z-AXIS TRAVEL: 13"
SPINDLE SPEED: 5000 RPM
SPINDLE NOSE: A2 #5 ASA
SPINDLE BORE DIAMETER: 2.09"
SPINDLE BEARING DIAMETER (FRONT):3.54"
TURRET
NUMBER OF TOOL STATIONS: 12
RAPID TRAVERSE (X/Z): 790/945 IPM
MOTOR SPINDLE (30 MIN): 10 HP
FLOOR SPACE: 64" X 63"
WEIGHT, APPROX.: 7,030 LBS
FANUC 21iT CNC CONTROL
6” chuck
