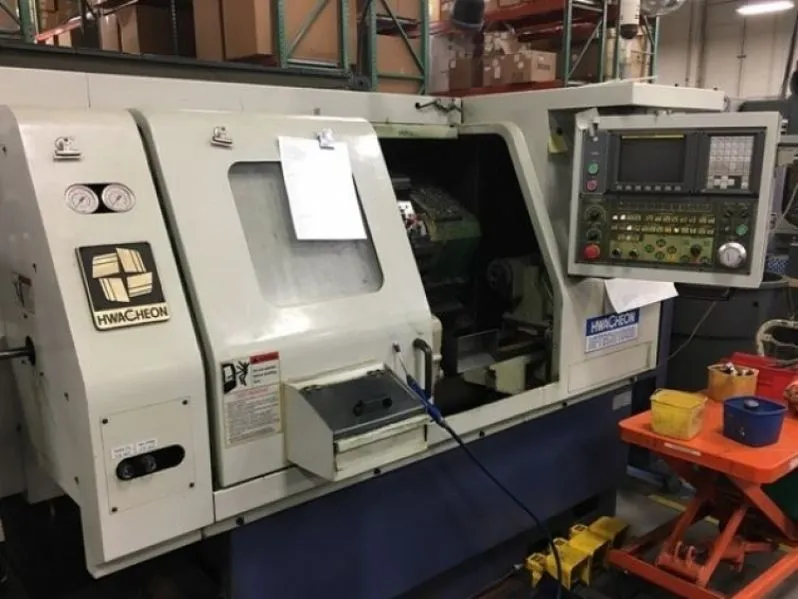

(2) HWACHEON Hi-Tech 100B 2-Axis CNC Turning With LNS Barfeed
Have one to sell?
ConditionUsed
1 available
SWING OVER BED: 19.7”
MAXIMUM TURNING DIAMETER: 11.8”
STANDARD TURNING DIAMETER: 8.3”
MAXIMUM TURNING LENGTH: 15.7”
SPINDLE NOSE: A2-6
MAXIMUM SPINDLE SPEED: 6,000 RPM
HOLE THROUGH SPINDLE: 3”
BAR SIZE: 1.75”
MOTOR: 15 HP
SPINDLE BEARING SIZE: 3.9”
NUMBER OF TOOLS: 12
TOOL SIZE: 1” X 1.3”
RAPIDS (X/Z): 1,180 IPM
TRAVERSE (X/Z): 6.7”/16.9”
QUILL DIAMETER: 3.2”
QUILL STROKE: 3.9”
QUILL TAPER: #3 MT
DIMENSIONS: 98” LR X 69” FB X 68” H
WEIGHT: 9,260 LBS
FANUC 21T CONTROL
LNS (Hydrobar Barfeed-12 Foot)
ATS COLLET CHUCK
TAILSTOCK
